Clamping force:10T to 500T;
Injection weight:35g to 850g;

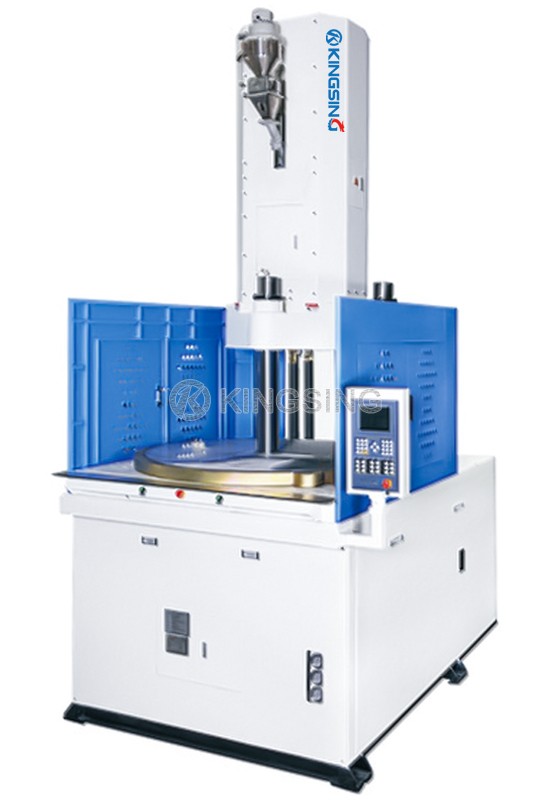

Vertical four columns clamping vertical injection;
Suitable for insert injection molding process;
We can upgrade to servo motorfor customer's need;
The actualenergy save50%~70%.
Model | KS-45T | KS-60T | Unit | ||||||
Injection Unit | Screw Diameter | Ф25 | Ф28 | Ф32 | Ф28 | Ф32 | Ф36 | mm | |
Theoretical | 63.8 | 80 | 104 | 80 | 104 | 132 | cm | ||
Injection Weight(PS) | 59.3(2.1) | 74.4(2.6) | 96.7(3.4) | 74.4(2.6) | 96.7(3.4) | 122.9(4.3) | g(oz) | ||
Max. Injection Pressure | 192(1960) | 153(1563) | 117(1195) | 212(2170) | 162(1661) | 128(1312) | Mpa(kgf/cm) | ||
Injection Rate | 53 | 67 | 87 | 73 | 95 | 121 | cm/s | ||
Injection Speed | 110 | 118 | mm/s | ||||||
★Speed Promote | 220↑(马力↑) | 164(45T) | mm/s | ||||||
Screw Rotation Speed | 0~240 | 0~240 | r.p.m | ||||||
Nozzile Out From Platens | ≧45 | ≧45 | mm | ||||||
Clamping Unit | Clamping Force | 441(45) | 588(60) | KN(tf) | |||||
Clamoping Stroke | 200 | 200 | mm | ||||||
Min.Mold Thickness | 150(200) | 180(260) | mm | ||||||
Max.Opening | 350(400) | 380(460) | mm | ||||||
Distance Between Tie Bars(H*V) | 410*350 | 460*330 | mm | ||||||
Max.Mould Size(L*W) | 400*350 | 440*400 | mm | ||||||
Ejector Distance | 40 | 40 | mm | ||||||
Ejector Force | 26.5(2.7) | 26.5(2.7) | KN(tf) | ||||||
Others | System Pressure | 13.7(140) | 13.7(140) | Mpa(kgf/cm) | |||||
Oil Tank Capacity | 200 | 230 | L | ||||||
Motor Power | 7.5(10) | 11(15) | KW(HP) | ||||||
Machine Dimensions | L*W | 1.7*1.3 | 1.8*1.4 | M | |||||
H | 2.7 | 3 | |||||||
Machine Weight | 2.1 | 2.6 | tf |

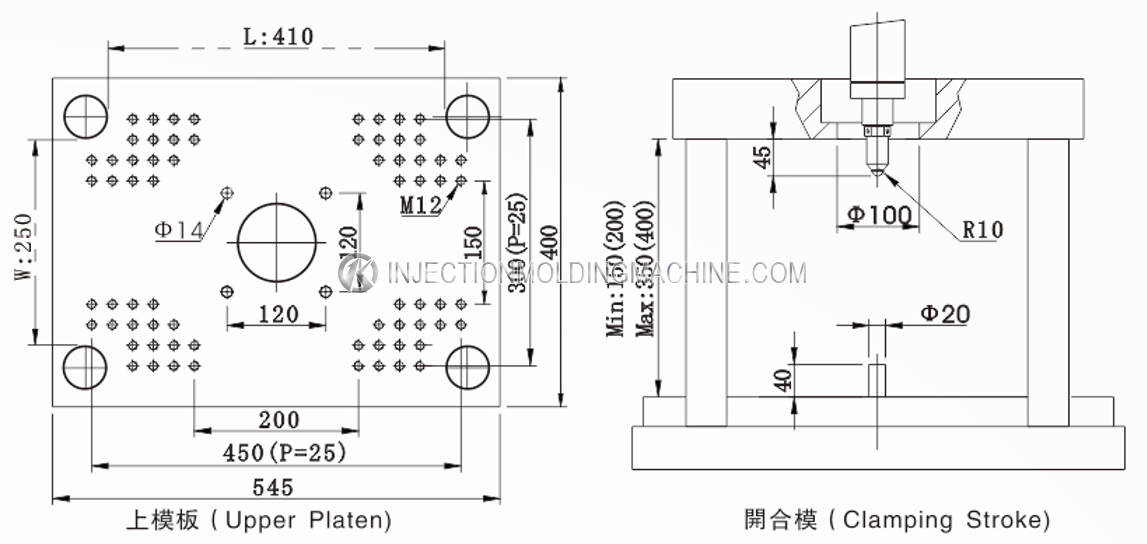

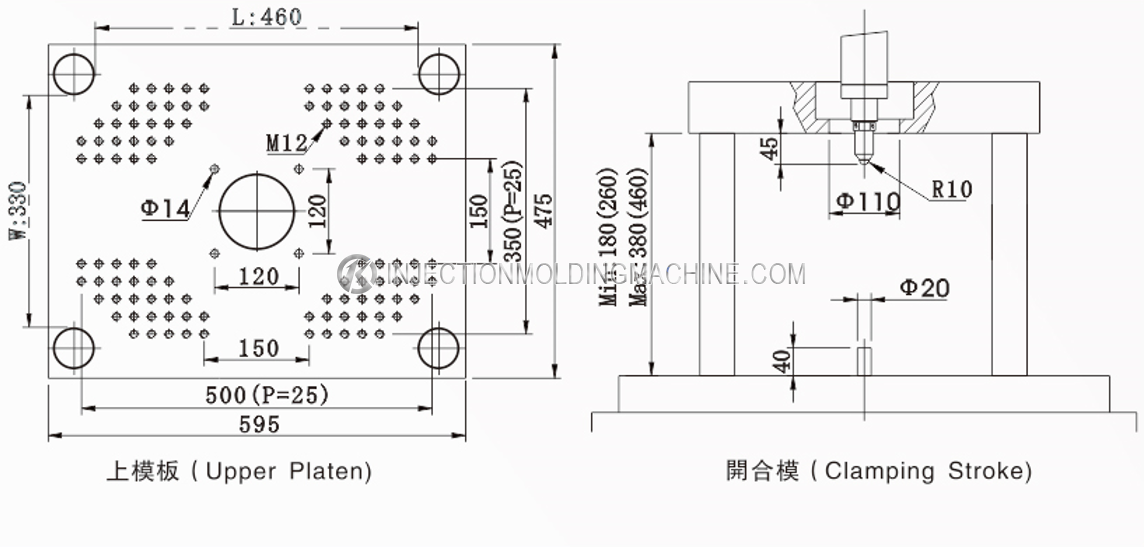

KS-45T | KS-60T |

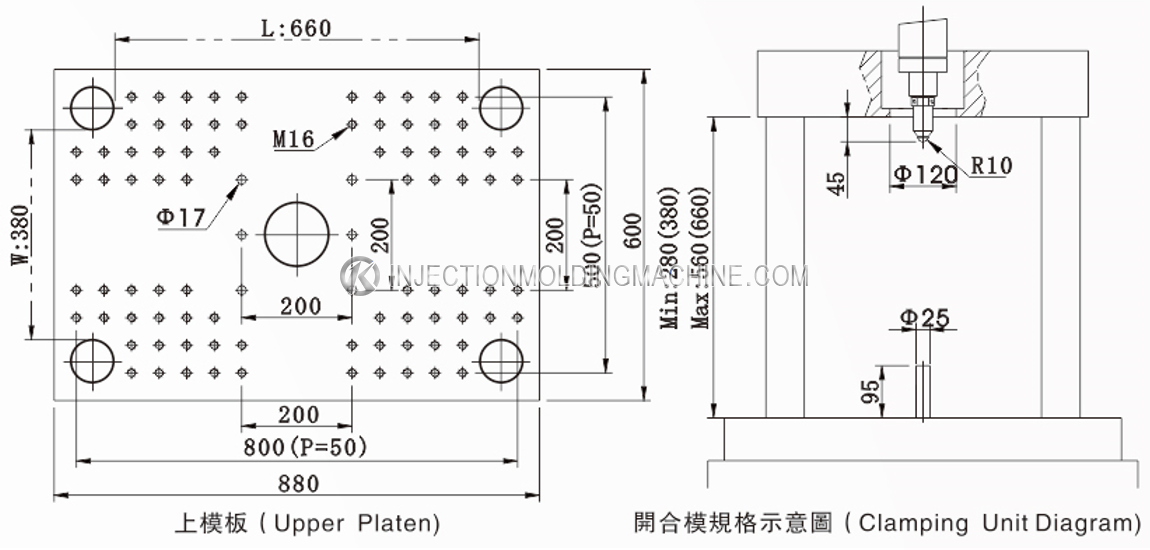

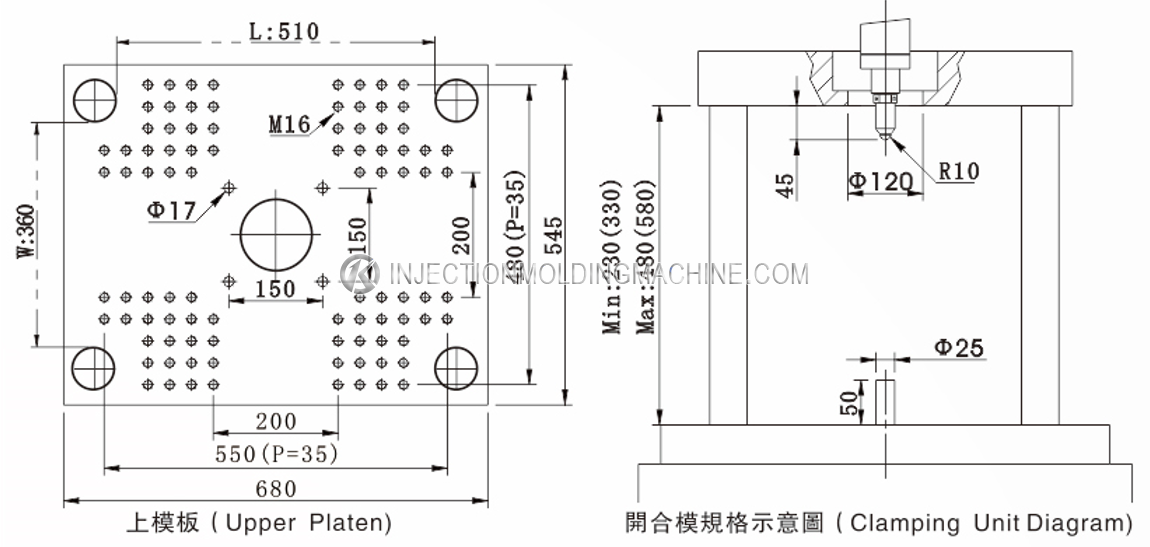

KS-85T | KS-120T |

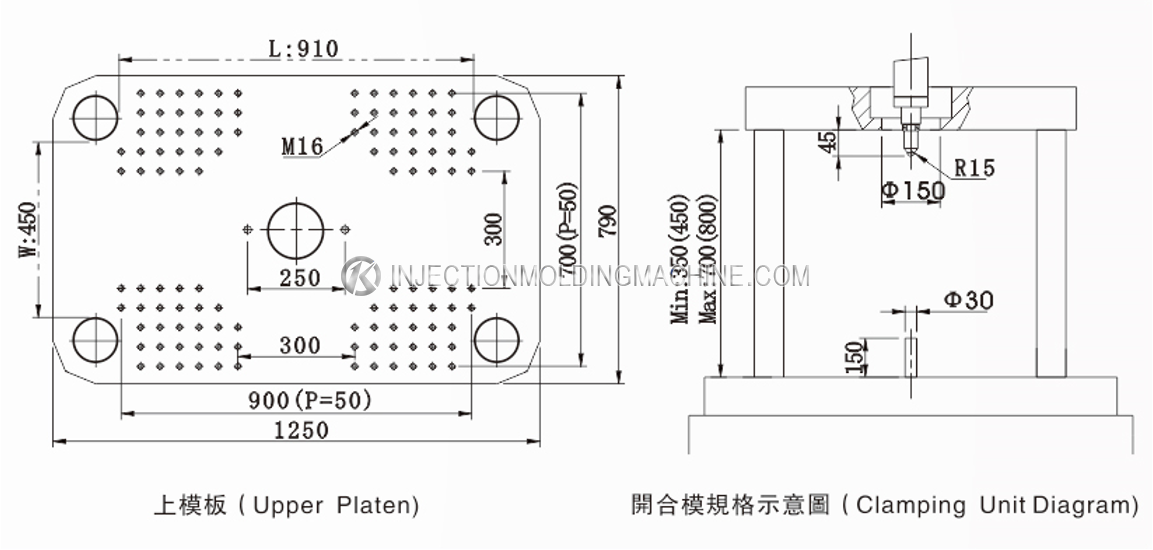

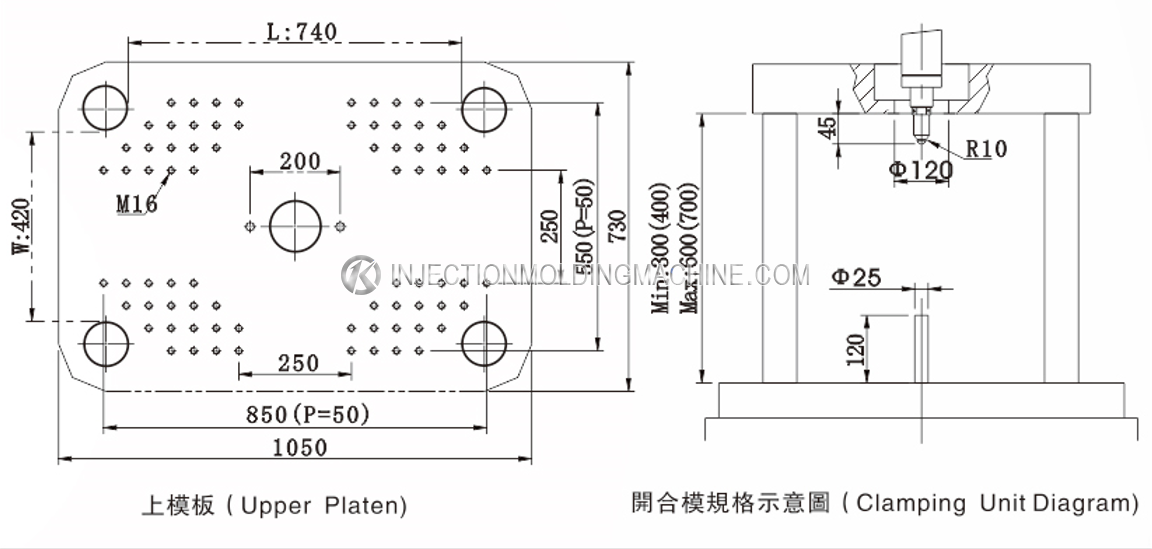

KS-160T | KS-200T |
KS-85T | KS-120T | KS-160T | KS-200T | ||||||||
Ф32 | Ф36 | Ф40 | Ф36 | Ф40 | Ф45 | Ф45 | Ф50 | Ф55 | Ф55 | Ф60 | Ф65 |
113 | 142 | 176 | 162 | 201 | 254 | 318 | 393 | 475 | 570 | 678 | 796() |
105(3.7) | 132(4.6) | 164(5.8) | 151(5.3) | 187(6.6) | 236(8.3) | 296(10.4) | 365(12.8) | 442(15.6) | 530(18.6) | 630(22.2) | 740(26.1) |
229(2331) | 181(1842) | 146(1492) | 222(2268) | 180(1838) | 142(1452) | 218(2226) | 177(1803) | 146(1490) | 235(2406) | 198(2022) | 168(1722) |
94 | 118 | 146 | 124 | 154 | 195 | 178 | 220 | 266 | 214 | 254 | 298 |
116 | 123 | 112 | 90 | ||||||||
220(45T)/165(60T) | 285(45T)/217(60T)/153(85T) | 290(60T)/200(85T)/168(160T) | 225(120T)/148(160T) | ||||||||
0~300 | 0~300 | 0~300 | 0~180 | ||||||||
≥45 | ≥45 | ≥45 | ≥45 | ||||||||
833(85) | 1176(120) | 1568(160) | 1960(200) | ||||||||
250 | 280 | 300 | 350 | ||||||||
230(330) | 280(380) | 300(400) | 350(450) | ||||||||
480(580) | 560(660) | 600(700) | 700(800) | ||||||||
510*360 | 660*380 | 740*420 | 910*450 | ||||||||
480*400 | 640*580 | 710*710 | 890*770 | ||||||||
50 | 95 | 120 | 150 | ||||||||
45(4.6) | 45(4.6) | 45(4.6) | 45(4.6) | ||||||||
13.7(140) | 13.7(140) | 13.7(140) | 13.7(140) | ||||||||
310 | 410 | 850 | 920 | ||||||||
15(20) | 18.5(25) | 18.5(30) | 22(30) | ||||||||
2.0*1.5 | 2.2*1.8 | 2.7*2.0 | 2.9*2.1 | ||||||||
3.4 | 4 | 4.2 | 4.4 | ||||||||
3.3 | 6 | 8.1 | 12.5 |
