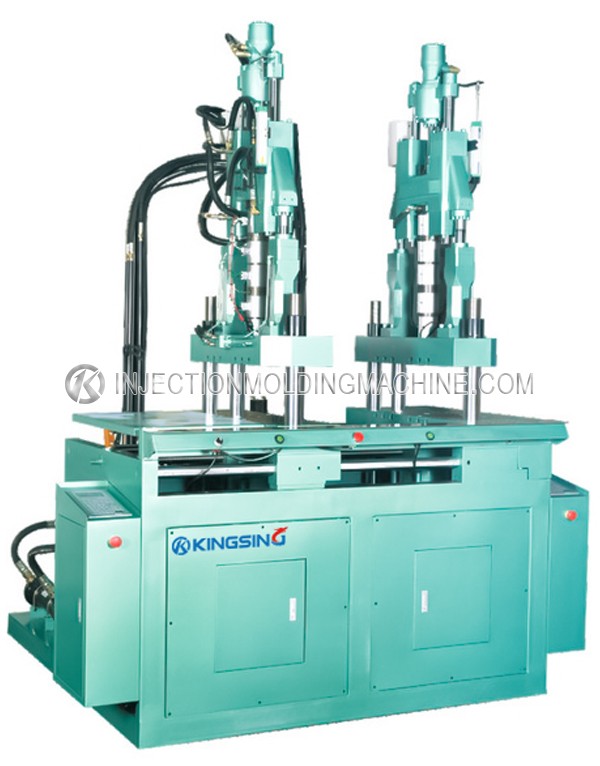

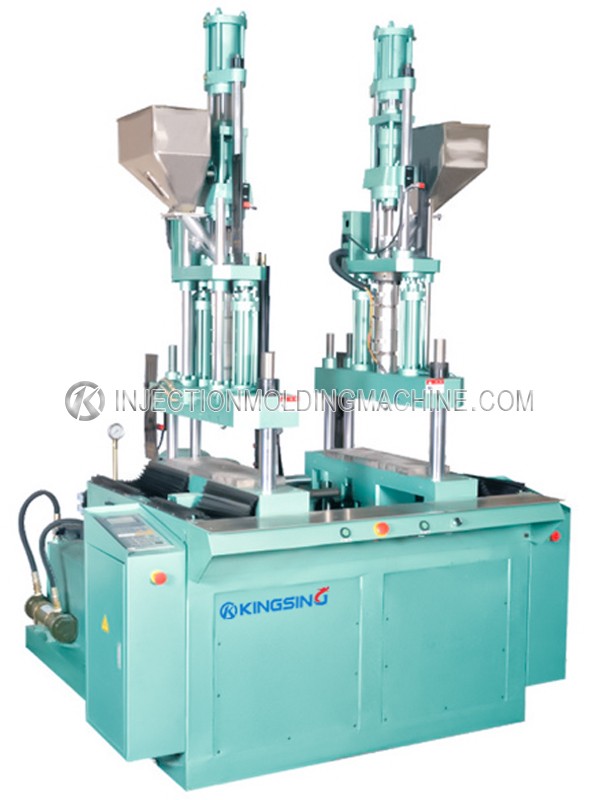

Vertical Rib Injection Molding Machine

Model：

Brand：KINGSING

Voltage：220V (Can be customized)

Function：

Price：

Vertical clamping ,vertical injection.
Ensure that the injection molding on the same plane,synchronous rib formed at two ends.
Injection of the relative effective distance, can be arbitrarily adjusted.
Convenient adjustment dimension stability, applicable to arbitrary size umbrella processing.
Disposable two molding, reduce the process, more efficient.

Model			KS-35T	KS-45T	KS-60T	Unit
Injection unit	Screw Diameter		Ф32	Ф36	Ф42	mm
	Theoretical Injection Volume		104	132	263	cm³
	Injection Weight(PS)		96.7	122.9	242	g
	Injection Rate		88.4	121	134	cm³/sec
	Injection Speed		110	118	96	mm/s
	Max. Injection Pressure		1195	1312	1190	Mpa(kgf/cm²)
	Screw Rotation Speed		0~300	0~250	0~300	r.p.m
Clamping unit	Clamping Force		35	45	60	KN(tf)
	Clamping Stroke		215	200	200	mm
	Max Mold Center Distance		800	1000	1200	mm
	Min Mold Center Distance		195	270	350	mm
	Min Mold Thickness		185	220	190	mm
	Max Opening		400	440	390	mm
	Template Size		645	590*65	715*350	mm
	Ejector Diastance		35	35	35	mm
	Ejector Forc		12.7（1.3）	16.5（1.7）	16.5（1.7）	KN(tf)
other	System Pressure		13.7（140）*2	13.7（140）*2	13.7（140）*2	Mpa(kgf/cm)
	Oil Tank Capacity		220	270	490	L
	Motor Power		4（5.5）*2	5.5（7.5）*2	11（15）*2	KW(HP)
	Machine Dimensions	L*W	1.88*1.42	2.2*2.3	2.5*2.25	M
	Machine Dimensions	H	3.4	3.5	3.5	M
	Machine Weight		3.9	4.2	5.2	tf
