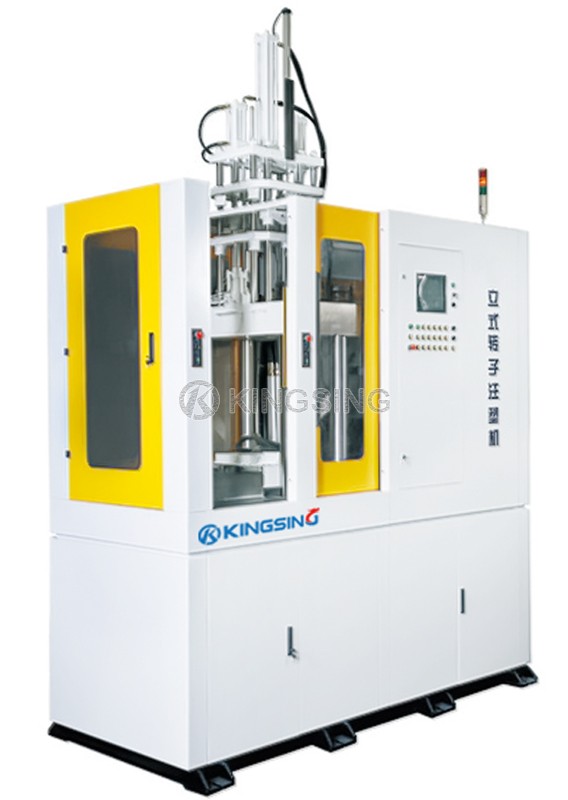

Scope of application:
This equipment is suitable for molding epoxy resin products; it used formotor and other industries.
Representative products: motor rotor.
Equipment features:
PLC control,high precision,easy to operate.
Fault computer self diagnosis,fault point at a glance.
Adopt four column locking mode to ensure that the clamping force is uniform and uniform, so that the product mold line is more beautiful.
The design of single slide plate, it is convenient and safe to take and put the product.
The servo energy saving design, with higher accuracy and faster response, and is more energy efficient than ordinary machine , energy saving hit 50%~70%.
Product molding advantages:
Design of single sliding plate, take products and insert parts out of the locking zone, and operate sately and conveniently.
Full closed package design,operation area protection design, operation area protection design,operation safer and more conmfortable.
The ejection and the main system are independent of servo control respectively, and the forming is more stable.
The robot can pick up the runner from top mould. so there is no need to manually clean up the waste.
The rotor pre tightening function prevents rotor tungsten steel from deflection.
The heating part is connected with the cooling water, and the equipment is more stable and durable.
The function of water and gas detection and alarm is to prevent all kinds of water and gas from affecting the equiment and products.
Model | KS-60T-S1 | Unit | |
Injection Unit | Screw Diameter | 50 | mm |
Theoretical Injection Volume | 255 | cm3 | |
Max.Injection Volume | 315 | kgf/cm3 | |
Max.Injection Pressure | 235 | cm3/s | |
Injection Speed | 120 | mm/s | |
Clamping Unit | Clamping Force | 60 | tf |
Clamping Stroke | 300 | mm | |
Min.Mold Thickness | 700 | mm | |
Max.opening | 1000 | mm | |
Distance Between Tie Bars(H*V) | 670*650 | mm | |
Sliding table size(L*W) | 700*650 | mm | |
Ejector Distance | 200 | mm | |
Ejector Force | 4.6 | tf | |
Other | System Pressure | 140 | kgf/cm2 |
Oil Tank Capacity | 140 | L | |
Motor Power | 5+11 | KW | |
Machine Dimensions | 3.1*1.1*4.1 | L*W*H | |
Machine Weight | 5.8 | 5.8 |
