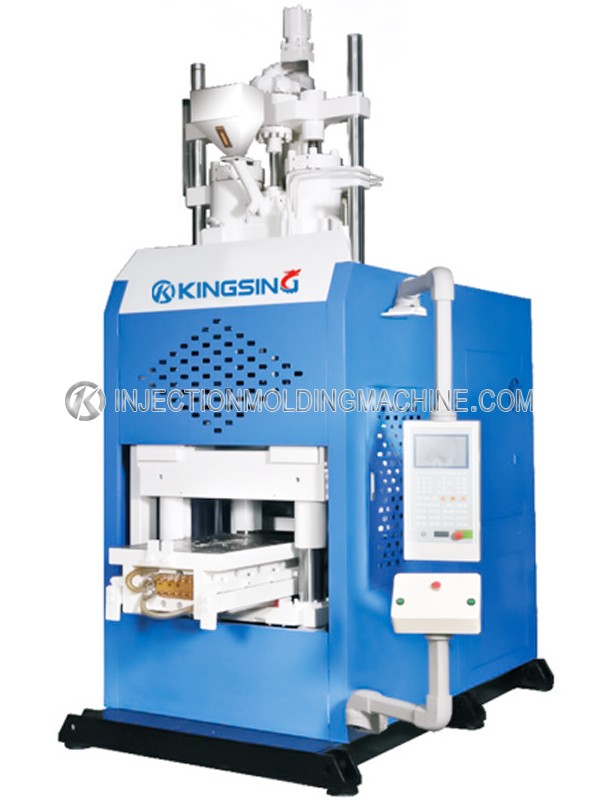

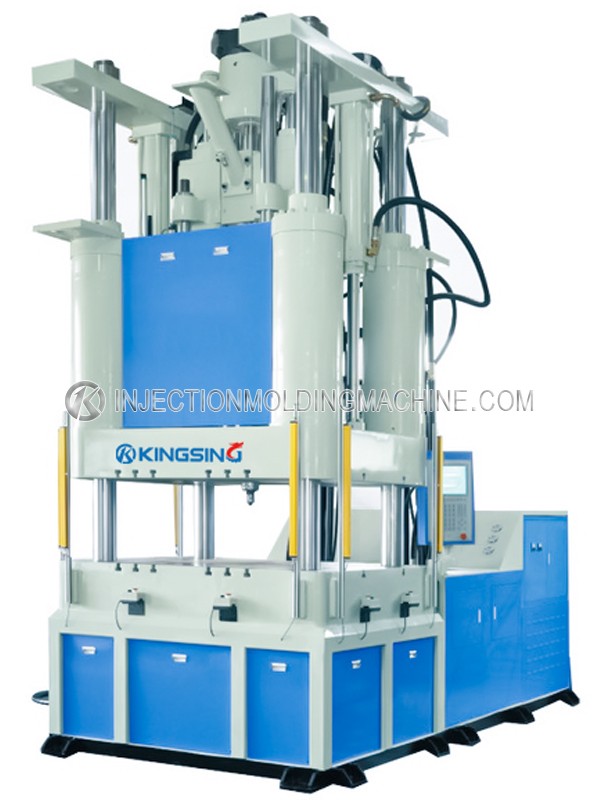

Two Platen Vertical Injection Machine

Clamping force:200T~1500T

Application:

• This equipment is suitable for large-scale products with inserts, and can be used in auto, electronics, daily necessities, toys, tools and other industries.

• Representative product: plastic flower.

Equipment characteristics:

• With professional computer, high precision,fault computer self diagnosis,fault point is easy to found.

• With the two platen center oil pressure locking mould, the clamping force is even, so that the product parting line is smaller and not obvious.

• With a single slide table design is safe and convenient to operate. It can install the automation equipment as fully automatically.

• With the linear guide slide structure on sliding table function, it hit precise location and smooth operation.

• With asynchronous servo energy-saving system; it hit higher precision and faster response; it can save 50%~70% energy than the common machine.

Advantages compared with traditional machines:

• With a linear track sliding structure without skateboard base to save space.

• With clamping nutfor stronger clamping structure . The working table is low and easv to install. It can be operated without additional operation table.

• With the special mould-locking start high pressure structure, hit high pressure within 0.3 second as a very short time.

• The new structure design has lower oil temperature and the tank capacity is 30% from the traditional machine.

• The mold clamping stroke is bigger space and is more suitable for deep cavity injection molding.

• lt can be usedin single color injection molding or mixed color injection molding.
